Grommet - Brake Pipe Support

Grommet - Brake Pipe Support

0.31

Application: Series 1 1954 to 1958, Series 2 and Series 3.
Description: Grommet to support brake pipe on rear axle casing. Used with clip 56666.
Approximate dimensions: overall length 21.5mm(0.85"), inside diameter 7mm(0.3"), outside diameter 14.5mm(0.6")
find out more

Clip for brake pipe grommet

Clip for brake pipe grommet

0.61

Application: Series 1 1954 to 1958, Series 2 and Series 3.
Description: Clip for brake pipe support grommet 6860L. Used on rear axle casing on all Series models from 1954 to 1984.
Approximate dimensions: 11mm(7/16") wide, 34mm(1.3") long, mounting hole 5mm(0.2") diameter, internal diameter of clip when closed 13mm.
find out more

Sealing Ring Water Pump to Cylinder Head

Sealing Ring Water Pump to Cylinder Head

2.18

Application: Series 1 1.6ltr & 2.0Ltr and Series 2A/3 2.6ltr petrol engines.
Description: Thick rubber sealing ring between water pump and cylinder head.
Approximate dimensions: internal diameter 13mm (1/2"), outside diameter 24mm (0.95"), thickness 5.3mm (0.2")
find out more

Gasket Set for Series Gearboxes

Gasket Set for Series Gearboxes

4.20

Application: Series 1, Series 2 & 3 with 4 or 6 cylinder engines.
Description: Set of replacement gaskets for main and transfer gearboxes. Does NOT include seals.
find out more

Water Pump Series1 Petrol

Water Pump Series1 Petrol

51.00

Application: Series 1 1.6ltr & 2.0ltr petrol (gasolene) engines.

Description: Reproduction cast iron water pump, supplied with gaskets.
find out more

Gaiter for High/Low Gear Lever

Gaiter for High/Low Gear Lever

2.46

Application: Series 1, Series 2/2A and Series 3.

Description: Reproduction rubber gaiter for the high/low gear lever.

Approximate dimensions: Overall length 143mm, height 90mm.

find out more

Oil Seal Set for Gearbox

Oil Seal Set for Gearbox

13.70

Application: Series 1, 2 & 3 with 4 or 6 cylinder engine.
Description: Set of oil seals and 'O' rings for main and transfer gearboxes. Includes seals for selector shafts.
find out more

Copper Ring Water Pump to Thermostat Housing

Copper Ring Water Pump to Thermostat Housing

7.44

Application: Series One with 1.6 or 2 litre petrol engine. Series Two with 2 litre petrol engine.
Description: Copper ring to support 'O' ring between water pump and thermostat housing.
Approximate dimensions: outside diameter 16mm(0.63"), inside diameter 11mm(0.43"), height 7.5mm(0.3")
find out more

Wheel Stud for Series 1

Wheel Stud for Series 1

5.82

Application: All Series One models.

Description: Reproduction wheel stud for Series 1. Threaded 9/16"BSF. Use with nut 217361.

Approximate dimensions: Overall length 52mm(2"), short threaded end 12mm(0.47"), long threaded end 27.5mm(1.08"), land 12.5mm(0.5")

find out more

These Superb Prices are ONLY available when you order ON-LINE

Digital Dispensary > LAND Rover Series One Parts > Land Rover Series One Cooling Parts
Page:  1  2   >   >>
Top Hose Series 1 Ref: 268037
Application: Series 1 models with petrol engine.

Description: Reproduction top hose.

Approximate dimensions: Overall length round bend is 15.7cm(6.2"), inside diameter 28mm(1.1"), outside diameter 37mm(1.5")

Sorry we cannot obtain this hose currently. However the bottom hose, 268038 can be trimmed to fit.

Price: 9.30 (11.16 Including VAT at 20%)


Top Hose Series 1

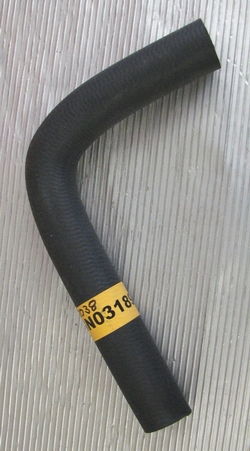

Bottom Hose Ref: 268038
Application: all Series 1 models.

Description: Reproduction bottom for Series 1. Can be cut to suit top hose 268037.

Approximate dimensions: inside diameter 28mm(1.1"), overall length 35cm(13.8").

Price: 12.00 (14.40 Including VAT at 20%)




People who bought this item also bought:
1. 'O' Ring for Thermostat (Ref: 527235)
2. Gasket Exhaust Manifold to Down Pipe (Ref: 213358)
3. Gasket Cylinder Head End Plates (Ref: 213811)
Bottom Hose
Bypass Hose Series 1 1948-1953 Ref: 212345
Application: Series 1 1948 to 1953 with 1.6 litre and early 2 litre engines.

Description: Reproduction bypass hose.

Approximate dimensions: Overall length 88mm(3.5"), outside diameter 45mm(1.8"), inside diameter 34mm(1.3")

Price: 4.91 (5.89 Including VAT at 20%)




People who bought this item also bought:
1. 'O' Ring for Thermostat (Ref: 527235)
2. Bolt 5/16BSF x 2.75" (Ref: 215180)
3. Bolt 5/16BSF x 3.69" (Ref: 215191)
Bypass Hose Series 1 1948-1953
Bypass Hose Series 1 Ref: 242056
Application: Series 1 with 2 litre petrol engine.

Description: Reproduction thermostat bypass hose.

Approximate dimensions: Length 23cm(9"), internal diameter 35mm(1.4")

Price: 12.12 (14.54 Including VAT at 20%)



Bypass Hose Series 1
Heater Hose Ref: 234063
Application: Series I and Series 2 1948 to 1967 when fitted with heater.

Description: Replacement heater hose.

Approximate dimensions: Internal diameter 7/16"(11.5mm), outside diameter 21mm(0.8"), overall length 124mm(4.9").

Price: 8.99 (10.79 Including VAT at 20%)



Heater Hose
Water Pump Series1 Petrol Ref: 269974
Application: Series 1 1.6ltr & 2.0ltr petrol (gasolene) engines.

Description: Reproduction cast iron water pump, supplied with gaskets.

Price: 42.50 (51.00 Including VAT at 20%)




People who bought this item also bought:
1. Sealing Ring Water Pump to Cylinder Head (Ref: RTC1975)
2. Copper Ring Water Pump to Thermostat Housing (Ref: 9197)
3. Grommet Series 1 Pedals (Ref: 70620)
Water Pump Series1 Petrol
Spacer - Radiator Cooling Fan Ref: 233802
Application: Series 1 1600 and 2000cc engines with welded type cooling fans.

Description: Aluminium spacer block between cooling fan and water pump pulley.

Approximate dimensions: 34.5mm(1.4") x 34.5mm(1.4") x 19.5mm(0.77").

Price: 7.95 (9.54 Including VAT at 20%)




People who bought this item also bought:
1. Head Gasket Set 1600cc (Ref: ZZCB310)
2. Sealing Ring Water Pump to Cylinder Head (Ref: RTC1975)
3. Copper Ring Water Pump to Thermostat Housing (Ref: 9197)
Spacer - Radiator Cooling Fan
Gasket Water Pump S1 Ref: 9118
Application Series 1 1.6ltr &2.0Ltr petrol (gasolene) engine.
Description: Original cork gasket between water pump and cylinder block.

Price: 2.00 (2.40 Including VAT at 20%)




People who bought this item also bought:
1. Sealing Ring Water Pump to Cylinder Head (Ref: RTC1975)
2. Copper Ring Water Pump to Thermostat Housing (Ref: 9197)
3. 'O' Ring for Thermostat (Ref: 527235)
Gasket Water Pump S1
Sealing Ring Water Pump to Cylinder Head Ref: RTC1975
Application: Series 1 1.6ltr & 2.0Ltr and Series 2A/3 2.6ltr petrol engines.
Description: Thick rubber sealing ring between water pump and cylinder head.
Approximate dimensions: internal diameter 13mm (1/2"), outside diameter 24mm (0.95"), thickness 5.3mm (0.2")

Price: 1.82 (2.18 Including VAT at 20%)




People who bought this item also bought:
1. Copper Ring Water Pump to Thermostat Housing (Ref: 9197)
2. Water Pump Series1 Petrol (Ref: 269974)
3. Gasket Water Pump S1 (Ref: 9118)
Sealing Ring Water Pump to Cylinder Head
Copper Ring Water Pump to Thermostat Housing Ref: 9197
Application: Series One with 1.6 or 2 litre petrol engine. Series Two with 2 litre petrol engine.
Description: Copper ring to support 'O' ring between water pump and thermostat housing.
Approximate dimensions: outside diameter 16mm(0.63"), inside diameter 11mm(0.43"), height 7.5mm(0.3")

Price: 6.20 (7.44 Including VAT at 20%)




People who bought this item also bought:
1. Sealing Ring Water Pump to Cylinder Head (Ref: RTC1975)
2. Water Pump Series1 Petrol (Ref: 269974)
3. Fixings Kit for Water Pump (Ref: 269974FIX)


Related products:
1. Sealing Ring Water Pump to Cylinder Head (Ref: RTC1975)
Copper Ring Water Pump to Thermostat Housing
Digital Dispensary > LAND Rover Series One Parts > Land Rover Series One Cooling Parts
Page:  1  2   >   >>

Haven't found what you want? Then try our quotation service.

Main Pages


New Products

Steering Arm - Series 1

Steering Arm - Series 1

17.82

Application: Series 1 models 1948 to 1956 approx.

Description: Drop arm for early type steering box. This arm is held in place with a pinch bolt.

Approximate dimensions: Overall length 17.4cm(6.9")

find out more

'D' Washer - Pedal Shaft

'D' Washer - Pedal Shaft

0.96

Application: Series 1 models.

Description: 'D' washer for support shaft for brake and clutch pedals.

Approximate dimensions: Outside diameter 38mm(1.5"), thickness 3mm(1/8").


find out more

Fixing Kit for Manifolds - Metric

Fixing Kit for Manifolds - Metric

12.83

Application: Series 3 from 1980 with 2.25 litre petrol engine.

Description: Metric threaded kit of fixings to hold manifolds to cylinder head. Kit includes 6 bolts, 2 set screws, 3 studs, 9 plain washers, 11 lock washers, 3 nuts, 2 clamps and 2 lockers

find out more

Fixing Kit for Manifolds - Imperial

Fixing Kit for Manifolds - Imperial

10.20

Application: Series 2 and Series 3 to approx 1980 with 2.25 litre petrol engine.

Description: Imperial (inch) threaded kit of fixings to hold manifolds to cylinder head. Kit includes 6 bolts, 2 set screws, 3 studs, 9 plain washers, 11 lock washers, 3 nuts, 2 clamps and 2 lockers

find out more

Shackle Plate Rear

Shackle Plate Rear

11.16

Application: Series1 1948 to 1953.

Description: Shackle plate for rear springs with plain 9/16" diameter holes.

Approximate dimensions: Length 113mm(4.45"), width 38mm(1.5"), thickness 9.2mm(0.36")
find out more

Shackle Plate Rear

Shackle Plate Rear

13.02

Application: Series 1 1948 to 1953.

Description: Shackle plate for rear springs with 1/2"BSF threaded holes.

Approximate dimensions: Length 113mm(4.45"), width 38mm(1.5"), thickness 9.2mm(0.36")

find out more

Clip for 3/16" Brake Pipe

Clip for 3/16

1.39

Application: Series1, Series2/2A and Series3 models.

Description: Reproduction stainless steel clip for brake pipes. Intended for 3/16" pipe, but will work with 1/4" diameter pipe also.

Approximate dimensions: Length 20mm(0.8"), width 10mm(3/8"), height 5mm(0.2"), hole diameter 4mm(0.16").

find out more

Rear End-plate for Cylinder Head

Rear End-plate for Cylinder Head

97.66

Application: Series 1 petrol models 1948 to 1958, Series 2 models with 2 litre petrol engine.

Description: Reproduction end plate in cast aluminium with mounting aperature for thermo switch.

Approximate dimensions: Length 91mm(3.6"), height 84mm(3.3"), depth 18.4mm(0.72")

find out more
