Sealing Ring Water Pump to Cylinder Head

Sealing Ring Water Pump to Cylinder Head

2.18

Application: Series 1 1.6ltr & 2.0Ltr and Series 2A/3 2.6ltr petrol engines.
Description: Thick rubber sealing ring between water pump and cylinder head.
Approximate dimensions: internal diameter 13mm (1/2"), outside diameter 24mm (0.95"), thickness 5.3mm (0.2")
find out more

Gaiter for High/Low Gear Lever

Gaiter for High/Low Gear Lever

2.46

Application: Series 1, Series 2/2A and Series 3.

Description: Reproduction rubber gaiter for the high/low gear lever.

Approximate dimensions: Overall length 143mm, height 90mm.

find out more

Male Union for Vacuum Pipe

Male Union for Vacuum Pipe

3.25

Application: Series 1 and Series 2A.

Description: Brass male union for 1/8" copper pipe. Threaded to fit Solex 32PBI.

Aproximate dimensions: Length 10mm(0.39"), internal diameter 1/8"(3.2mm), hex 9mm(0.35") across flats, thread 1/4"BSF.

find out more

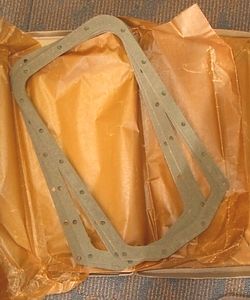

Sump Gasket Series 1

Sump Gasket Series 1

10.82

Application: Series 1 1600cc or 2000cc petrol (gasolene) engine.
Description: Original cork sump gasket, manufactured in the 1950's.
find out more

'O' Ring for Thermostat

'O' Ring for Thermostat

0.55

Application: Series 1, 2 & 3 4cylinder engines.
Description: 'O' ring for sealing thermostat to cylinder head.
Approximate dimensions: outside diameter 55mm (2.2").
Original part number 01645
find out more

Swivel Housing Outer Seal

Swivel Housing Outer Seal

13.78

Application: Series 1, 2 & 3 front axles.
Description: Genuine oil seal for swivel housings.
Approximate dimensions: Outside diameter 16.8cm (6.6"), thickness 14.7mm (0.58")
Original part number: 502406.
find out more

Grommet for vacuum pipe

Grommet for vacuum pipe

4.37

Application: Series 1 and Series 2A.

Description: Split rubber grommet for us with 214228 retaining clip. Used on 1/8" diameter copper vacuum pipe.

Approximate dimensions: Length 17mm(0.67"), internal diameter 3mm(1/8"), overall diameter 9mm(0.35")

find out more

Set of Rivets for Bonnet Strip

Set of Rivets for Bonnet Strip

10.22

Application: Series 1 and early Series 2A.

Description: Set of 12 bifurcated rivets in black for retaining the bonnet rest strip 300824A.

Approximate dimensions: Head diameter 9.5mm(3/8"), length 14mm(9/16"), shank diameter 4.8mm(3/16").

find out more

Series1, 2 & 3 Wheel Bearing Kit with Japanese Bearings

Series1,  2 & 3 Wheel Bearing Kit with Japanese Bearings

39.94

Application: Series 1 front axle only, Series 2, Series 2A and Series 3 to 1980. Where inner bearing is larger than outer bearing. Covers both long and short wheel base vehicles, suitable for either front or rear wheel.

Description: Kit of parts to service one wheel hub. Kit comprises inner and outer Japanese manufactured wheel bearings (NTN or similar brand), Gaco inner seal, flange gasket, hub nut locker, felt outer seal, 'o' ring outer seal and split pin.

find out more

These Superb Prices are ONLY available when you order ON-LINE

Digital Dispensary > REGULAR Service and Repair Parts > Engine Parts > 4 Cylinder Petrol Engine Parts
Page:  1  2  3   >   >>
Decoke Gasket Set Ref: STC1567=
Application: 2.25 and 2.5 litre petrol engines for Series 2A, Series 3 and Defender.
Description: Set of gaskets for cylinder head, also called decoke gasket set. Manufactured by Payen (part of Federal Mogul) features composite head gasket (which does not require re-torqueing) and 46 other gaskets and seals. This set is "asbestos free".

Out of stock until January 2018.

Price: 31.71 (38.05 Including VAT at 20%)


Decoke Gasket Set
Manifold Gasket 4cyl Petrol Ref: 274171=
Application: 2.25 and 2.5 litre petrol engines for Series 2A, Series 3 and Defender.
Description: Non genuine gasket between manifolds and cylinder head.

Price: 0.85 (1.02 Including VAT at 20%)




People who bought this item also bought:
1. Fixing Kit for Manifolds - Imperial (Ref: 598473IMPFIT)
2. Gaskets and Fitting Kit (Ref: 598473FIT)
3. Upper Lever Arm for Steering Relay (Ref: 531040)
Manifold Gasket 4cyl Petrol
Rocker Box Gasket 4cyl Petrol Ref: ERR4933
Application: 2.25 and 2.5 litre petrol engines for Series 2A, Series 3 and Defender.
Description: Gasket for rocker box (valve cover). This is a non-genuine gasket, it is self adhesive on one face to ease assembly and improve sealing.

Price: 1.27 (1.52 Including VAT at 20%)




People who bought this item also bought:
1. Oil Pressure Switch (Ref: 90519864)
2. Horn Button (Ref: 90217279)
3. Gasket Set for Series Gearboxes (Ref: 600603D)
Rocker Box Gasket 4cyl Petrol
Rocker Box Fitting Kit Ref: 247121KIKT
Application: 2.25 petrol engine in Series2, Series2A and Series3.

Description: Smatren up the top of your rocker box with this set of 3 domed nuts, 3 aluminium sealing washer, 3 domed washers and 3 rubber seals.


Price: 15.90 (19.08 Including VAT at 20%)




People who bought this item also bought:
1. Diaphragm kit for Zenith 36IV (Ref: ZZB17333)
2. Vacuum Pipe Elbow (Ref: ZZ030.016)
3. Vacuum Unit - 45D type (Ref: AEU1034)
Rocker Box Fitting Kit
Cylinder Head Gasket 4cyl Petrol Engine Ref: ERC6380=
Application: 2.25 and 2.5 litre petrol engines for Series 2A, Series 3 and Defender.

Description: Composite cylinder head gasket by 'Elring'. Composite head gaskets do not require re-torquing as the copper type do.

Price: 14.90 (17.88 Including VAT at 20%)



Cylinder Head Gasket 4cyl Petrol Engine
Timing Chain - AE boxed Ref: ETC4499
Application: Series 1 1.6ltr & 2ltr petrol engines, Series 2&3 2.25ltr petrol & diesel engines.
Description: Duplex timing chain with 78 links and pitch of 3/8". From Federal Mogul as an AE product.
Original part number: 09156

Price: 10.45 (12.54 Including VAT at 20%)




People who bought this item also bought:
1. Water Pump Series1 Petrol (Ref: 269974)
2. Return Spring - Iinjector Pump (Ref: 277502)
3. Flexible Fuel Pipe (Ref: 276267)
Timing Chain - AE boxed
Oil Seal between Crankshaft and Front Cover Ref: ERR6490
Application: S1 1600 & 2000 petrol, 2ltr diesel, Series 2 & 3 4 and 6 cylinder engines, 200Tdi and 300TDi.
Description: Oil seal by Corteco for engine front cover.
Approximate dimensions: outside diameter 63.5mm (2.5"), thickness 10mm (3/8").
Original part number 213744.

Price: 3.65 (4.38 Including VAT at 20%)




People who bought this item also bought:
1. Gasket Inlet Pipe to Water Pump (Ref: 213724)
2. Gasket By-pass Hose Ends (Ref: 210419)
3. Gasket Carburetter to Inlet Manifild (Ref: 212233)
Oil Seal between Crankshaft and Front Cover
Oil Pressure Switch Ref: 90519864
Application: Series 1 2.0ltr petrol & 2.0ltr diesel, S2&3 2.25ltr petrol & diesel.

Description: Oil pressure switch for oil pressure warning light.

Original part number 505152

Price: 3.83 (4.60 Including VAT at 20%)




People who bought this item also bought:
1. Switch Panel Lights (Ref: 240908)
2. Buffer for Door (Ref: 304110)
3. Gaiter for Hand Brake Lever (Ref: 303947)
Oil Pressure Switch
Spigot Bush Ref: LFB500050
Application: All 4 and 6 cylinder engines fitted to Series 1, 2 & 3. Also 200 & 300TDi fitted to Defender, Discovery 1 and Range Rover Classic. Also TD5 models. In addition Series 1, 2 and 3 transfer box.

Description: Bronze bush fitted to rear of crankshaft to take nose of first motion shaft of gearbox. Also used as bush between front output shaft and rear output shaft in Series transfer boxes (not 109V8).
Original part number 8566 and 8566L.

Approximate dimensions: Outside diameter 1 1/16"(27mm), inside diameter 7/8"(22mm), length 0.84"(21.4mm)

Price: 1.21 (1.45 Including VAT at 20%)




People who bought this item also bought:
1. Yellow Knob - 4WD Gear lever (Ref: 232813)
2. Gasket By-pass Hose Ends (Ref: 210419)
3. Retainer and Fixings for Hi/Lo Gaiter (Ref: 303817KIT)
Spigot Bush
Gasket Cover Plate to Timing Window Ref: 50216
Application: S1, S2 & S3 4 cylinder engines.
Description: Cork gasket for cover plate on flywheel housing.

Price: 0.88 (1.06 Including VAT at 20%)




People who bought this item also bought:
1. Grommet - wiring (Ref: 3H822L)
2. Felt Seal for Series 1 Pedals (Ref: 70621)
3. Gasket By-pass Hose Ends (Ref: 210419)
Gasket Cover Plate to Timing Window
Digital Dispensary > REGULAR Service and Repair Parts > Engine Parts > 4 Cylinder Petrol Engine Parts
Page:  1  2  3   >   >>

Haven't found what you want? Then try our quotation service.

Main Pages


New Products

Steering Arm - Series 1

Steering Arm - Series 1

17.82

Application: Series 1 models 1948 to 1956 approx.

Description: Drop arm for early type steering box. This arm is held in place with a pinch bolt.

Approximate dimensions: Overall length 17.4cm(6.9")

find out more

'D' Washer - Pedal Shaft

'D' Washer - Pedal Shaft

0.96

Application: Series 1 models.

Description: 'D' washer for support shaft for brake and clutch pedals.

Approximate dimensions: Outside diameter 38mm(1.5"), thickness 3mm(1/8").


find out more

Fixing Kit for Manifolds - Metric

Fixing Kit for Manifolds - Metric

12.83

Application: Series 3 from 1980 with 2.25 litre petrol engine.

Description: Metric threaded kit of fixings to hold manifolds to cylinder head. Kit includes 6 bolts, 2 set screws, 3 studs, 9 plain washers, 11 lock washers, 3 nuts, 2 clamps and 2 lockers

find out more

Fixing Kit for Manifolds - Imperial

Fixing Kit for Manifolds - Imperial

10.20

Application: Series 2 and Series 3 to approx 1980 with 2.25 litre petrol engine.

Description: Imperial (inch) threaded kit of fixings to hold manifolds to cylinder head. Kit includes 6 bolts, 2 set screws, 3 studs, 9 plain washers, 11 lock washers, 3 nuts, 2 clamps and 2 lockers

find out more

Shackle Plate Rear

Shackle Plate Rear

11.16

Application: Series1 1948 to 1953.

Description: Shackle plate for rear springs with plain 9/16" diameter holes.

Approximate dimensions: Length 113mm(4.45"), width 38mm(1.5"), thickness 9.2mm(0.36")
find out more

Shackle Plate Rear

Shackle Plate Rear

13.02

Application: Series 1 1948 to 1953.

Description: Shackle plate for rear springs with 1/2"BSF threaded holes.

Approximate dimensions: Length 113mm(4.45"), width 38mm(1.5"), thickness 9.2mm(0.36")

find out more

Clip for 3/16" Brake Pipe

Clip for 3/16

1.39

Application: Series1, Series2/2A and Series3 models.

Description: Reproduction stainless steel clip for brake pipes. Intended for 3/16" pipe, but will work with 1/4" diameter pipe also.

Approximate dimensions: Length 20mm(0.8"), width 10mm(3/8"), height 5mm(0.2"), hole diameter 4mm(0.16").

find out more

Rear End-plate for Cylinder Head

Rear End-plate for Cylinder Head

97.66

Application: Series 1 petrol models 1948 to 1958, Series 2 models with 2 litre petrol engine.

Description: Reproduction end plate in cast aluminium with mounting aperature for thermo switch.

Approximate dimensions: Length 91mm(3.6"), height 84mm(3.3"), depth 18.4mm(0.72")

find out more
