Digital Dispensary > Freelander 1 Parts > Suspension Freelander

Mounting Bush for Front Anti-roll Bar Ref: RBX101240
Application: Freelander 1 up to chassis number -YA999999.
Description: Genuine bush to locate anti-roll bar to chassis of Freelander. Usually fitted in pairs.
Approximate dimensions: length 36.5mm(1.4"), width 36.5mm(1.4"), inside diameter 21mm(0.8")
Price: £5.61 (£6.73 Including VAT at 20%)

Mounting bush for Front Anti-roll Bar Ref: RBX000010
Application: Freelander 1 from chassis number -1A000001.
Description: Genuine bush to locate anti-roll bar to chassis of Freelander. Same dimensions as RBX101240, but stiffer. Usually fitted in pairs.
Approximate dimensions: length 36.5mm(1.4"), width 36.5mm(1.4"), inside diameter 21mm(0.8")
Price: £3.33 (£4.00 Including VAT at 20%)

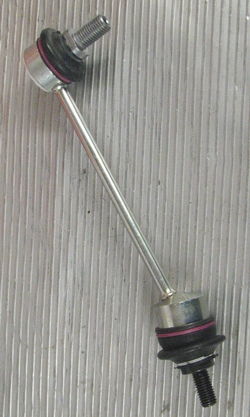

Link Anti-Roll Bar Ref: RBM100172
Application: Freelander One 1996 to 2006.
Description: Link for front anti-roll bar. See next two products for fixing nuts, one M10 and one M12.
Price: £17.55 (£21.06 Including VAT at 20%)

Flanged Nut M10 Ref: FX110047L
Application: Many including anti-roll bar link on Freelander One.
Description: M10 flanged locking nut.
Approximate dimensions: spanner size 15mm, overall diameter 21mm(0.83"), height 11mm(0.43")
Price: £0.35 (£0.42 Including VAT at 20%)

M12 Nyloc Nut Ref: ANR5116
Application: Many including anti-roll bar link on Freelander One.
Description: M12 nyloc nut.
Approximate dimensions: 19mm(0.75") across flats, 12mm(0.47") high.
Price: £1.25 (£1.50 Including VAT at 20%)

Genuine Bush for Longitudinal Link Ref: RGX101000
Application: Freelander One 1996 to 2006.
Description: Bush at chassis end of the longitudinal link to rear wheel hub carrier.
Approximate dimensions: overall length 55mm(2.2"), overall diameter 50.5mm(2"), bore diameter 12mm(0.47")
Bush location image
Price: £12.40 (£14.88 Including VAT at 20%)

Replacement Bush for Longitudinal Link Ref: RGX101000D
Application: Freelander One 1996 to 2006.
Description: Bush at chassis end of the longitudinal link to rear wheel hub carrier.
Approximate dimensions: overall length 55mm(2.2"), overall diameter 50.5mm(2"), bore diameter 12mm(0.47")
Bush location image
Price: £3.80 (£4.56 Including VAT at 20%)

Genuine Bush in Rear Hub Ref: RGX101010
Application: Freelander One 1996 to 2006.
Description: Suspension bush in rear hub carrier.
Approximate dimensions: overall length 40mm(1.57"), outside diameter 40mm(1.57"), inside diameter 12mm(0.47")
Bush location image
Price: £22.34 (£26.81 Including VAT at 20%)

Replacement Bush for Rear Hub Ref: RGX101010d
Application: Freelander One 1996 to 2006.
Description: Suspension bush in rear hub carrier.
Approximate dimensions: overall length 40mm(1.57"), outside diameter 40mm(1.57"), inside diameter 12mm(0.47")
Bush location image
Price: £5.75 (£6.90 Including VAT at 20%)

Genuine Bush Rear Suspension Ref: RGX101020
Application: Freelander One 1996 to 2006.
Description: Outer bush on rear lower link and both ends of adjustable link.
Approximate dimensions: overall length 45mm(1.77"), outside diameter 34.5mm(1.36"), inside diameter 12mm(0.47")
Bush location image
Price: £7.17 (£8.60 Including VAT at 20%)

Replacement Bush on Rear Suspension Ref: RGX101020d
Application: Freelander One 1996 to 2006.
Description: Outer bush on rear lower link and both ends of adjustale link.
Approximate dimensions: overall length 45mm(1.77"), outside diameter 34.5mm(1.36"), inside diameter 12mm(0.47")
Bush location image
Price: £2.65 (£3.18 Including VAT at 20%)

Genuine Bush for Bottom Link Ref: RGX101440
Application: Freelander One 1996 to 2006.
Description: Bush for inner end of lwer link on rear suspension.
Approximate dimensions: overall length 50mm(2"), outside diameter 44.5mm(1.75"), bore diameter 12mm(0.47")
Bush location image
Price: £11.65 (£13.98 Including VAT at 20%)

Replacement Bush for Bottom Link Ref: RGX101440D
Application: Freelander One 1996 to 2006.
Description: Bush for inner end of lwer link on rear suspension.
Approximate dimensions: overall length 50mm(2"), outside diameter 44.5mm(1.75"), bore diameter 12mm(0.47")
Bush location image
Price: £3.80 (£4.56 Including VAT at 20%)

Polybush set for Freelander Ref: ZZPOLYBUSHSET69
Full kit of bushes covering anti-roll bar, radius arms, lower link, front and rear wishbones.
Only available in the one set which includes composite bushes and different formulations for different functions.
Application: Freelander from 1998
Price: £158.31 (£189.97 Including VAT at 20%)

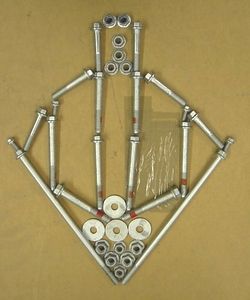

Fixings kit for Set 69 - Freelander Ref: ZZPOLYBUSHSET69FIX
The set of nuts, bolts and washers for fitting Polybush Set69 (Freelander 1998 on).
Lets you do a 'complete' job when fitting your new Polybush set. Rather than using tired and worn fixings, this set compliments the Polybushes with exact fit new fixings to give you complete peace of mind.
Price: £70.77 (£84.92 Including VAT at 20%)

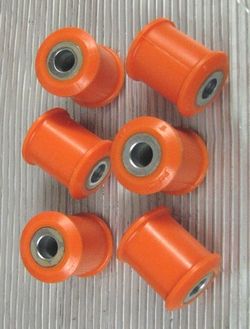

Polybush Kit for Rear Suspension Ref: ZZPOLYBUSHKIT1XQ
Application: Freelander One 1996 to 2006.
Description: Set of 6 bushes equivalent to RGX101020
Bush location image
Price: £44.76 (£53.71 Including VAT at 20%)
