Digital Dispensary > Land Rover Series One Parts > Land Rover Series One Ignition and Engine Electrics

Contact Breakers Lucas 25D Ref: RTC3270
Application: Lucas 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines, also used on late Series 1 engines.
Description: Lucas boxed contact breaker set also known as 'points'.
Original part number 269987.

Price: £2.50 (£3.00 Including VAT at 20%)

Condensor Lucas 25D Ref: RTC3472
Application: Lucas 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines.Also used on late Series 1 engines.
Description: Lucas boxed condensor.
Approximate dimensions: overall diameter 17mm (0.67 inches), lead 57mm (2.24 inches).
Original part numbers 269988 & 245007.
Price: £2.23 (£2.68 Including VAT at 20%)

Spark Plug Champion N5C Ref: RTC3571
Application: Series 2A and Series 3 4 cylinder engines with 7:1 compression ratio and all 6 cylinder Series engines. Also applicable to Series 1 engines.
Description: Champion N5C spark plug, original equipment.
Supersession of Series 1 part number 262796.
Price: £1.50 (£1.80 Including VAT at 20%)

Condenser S1 1.6 litre Ref: 260070
Application: Series 1 1600cc engine 1948 to 1953.
Description: Condenser for distributor, equivalent to Lucas 407044
Approximate dimensions: ovelall length 44mm(1.7"), overall diameter 17mm(0.7")
Price: £28.81 (£34.57 Including VAT at 20%)

Contact Breaker Points Set 1.6 Ref: 260073
Application: Series 1 with 1.6 litre petrol engine 1948 to 1953.
Description: Lucas points 407050
Price: £10.95 (£13.14 Including VAT at 20%)

Contact Breaker Points Set Ref: 245006
Application: Lucas 420196 distributor fitted to 2.0ltr engine 1954-1955.
Description: Contact breaker points set for distributor in original Lucas packaging.
Price: £6.77 (£8.12 Including VAT at 20%)

Replacement Distributor Cap Series One Ref: 261240D
Application: Series One 1948 to 1953.
Description: The original cap with side exit HT leads has become very difficult (and expensive) to source. This period cap with vertical exit HT leads is a good, functional alternative.
Approximate dimensions: overall diameter 81.5mm(3.2"), height 65mm(2.56")
Price: £27.50 (£33.00 Including VAT at 20%)

Distributor Cap Series One Ref: 245004
Application: Series One 1954 to 1958 Lucas 40504A distributor.
Description: Luas distributor cap.
Approximate dimensions: overall diameter 77.5mm(3.05"), height 38mm(2.7")
Price: £24.65 (£29.58 Including VAT at 20%)

Acorn for HT Leads Ref: 214278
Application: Series One and Series Two. 1948 to 1961 approx.
Description: Acorn nut for retaining high tensions leads to distributor caps and plug caps. Use with 217279 brass washers and copper cored high tension cable.
Approximate dimensions: height 24mm(0.95"), overall diameter 15.4mm(0.6"), thread diameter 12.5mm(0.5")
Price: £1.24 (£1.49 Including VAT at 20%)

Related products:

1. Split Brass Washer (Ref: 214279)

Split Brass Washer Ref: 214279
Application: Series One and Series Two. 1948 to 1961 approx.
Description: Split brass washer for retaining high tensions leads to distributor caps and plug caps. Use with 217278 acorn nut and copper cored high tension cable.
Approximate dimensions: overall diameter 10mm(0.375")
Price: £0.45 (£0.54 Including VAT at 20%)

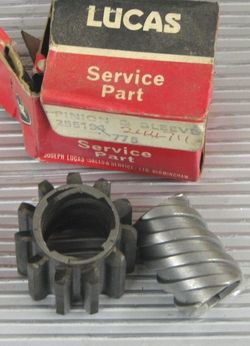

Pinion for Starter Motor Ref: 244711
Application: Lucas starter 25533D as fitted to Series 1 petrol 1955-58.
Description: Pinion assembly for starter motor.
Lucas part number 255194
Price: £18.20 (£21.84 Including VAT at 20%)

Bush for Starter Ref: 244714
Application: Lucas 25533D starter as fitted to Series 1 petrol engines.
Description: Bush for pinion end of starter.
Approximate dimensions: outside diameter 25.4mm (1"), inside diameter 22.3mm (7/8"), length 33.6mm (1.3").
Lucas part number 270038.
Price: £1.99 (£2.39 Including VAT at 20%)

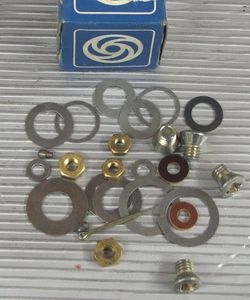

Sundry Parts Kit - Starter Ref: 244718
Application: Lucas 25533D starter as fitted to Series 1 petrol engines.
Description: Kit of screws, washers etc for rebuilding starter motor.
Lucas part number 256762.
Price: £11.00 (£13.20 Including VAT at 20%)

Bush - Starter Motor Ref: 242958
Application: Lucas 25533D Starter.
Description: Bush for commutator end of armature.
Lucas part number: 255491.
Approximate dimensions: overall length 19mm (0.75"), outside diameter 19mm (0.75"), inside diameter 16mm (5/8").
Price: £0.80 (£0.96 Including VAT at 20%)

Pinion - Starter Motor Ref: RTC4241
Application: Diesel starter motor M45G26147A.
Description: Engegement pinion for starter motor. Comes without clutch plates.
Lucas part number 291875.
Original Land Rover part number 279011.
Price: £15.00 (£18.00 Including VAT at 20%)

Pulley for Dynamo Ref: 272704
Application: C45 dynamo on 2.0litre diesel engines.
Description: Cast iron pulley for dynamo.
Price: £28.00 (£33.60 Including VAT at 20%)

Brush Set for Starter Motor Ref: 270225
Application: Series 1 & 2 with diesel engine.
Description: Set of brushes for Lucas M45G26147A starter motor.
Lucas part number 271735.
Price: £5.69 (£6.83 Including VAT at 20%)

Seal for Solenoid on Starter Ref: 519006
Application: Series 1 & 2, 2.0ltr diesel with Lucas M45G26147A starter.
Description: Seal between end cap and solenoid.
Lucas part number 765842.
Price: £1.45 (£1.74 Including VAT at 20%)

Digital Dispensary > Land Rover Series One Parts > Land Rover Series One Ignition and Engine Electrics
